Your Lighting Wall by 300 Truss
Easy & Fast installation
Click for Details / 点击详见图片

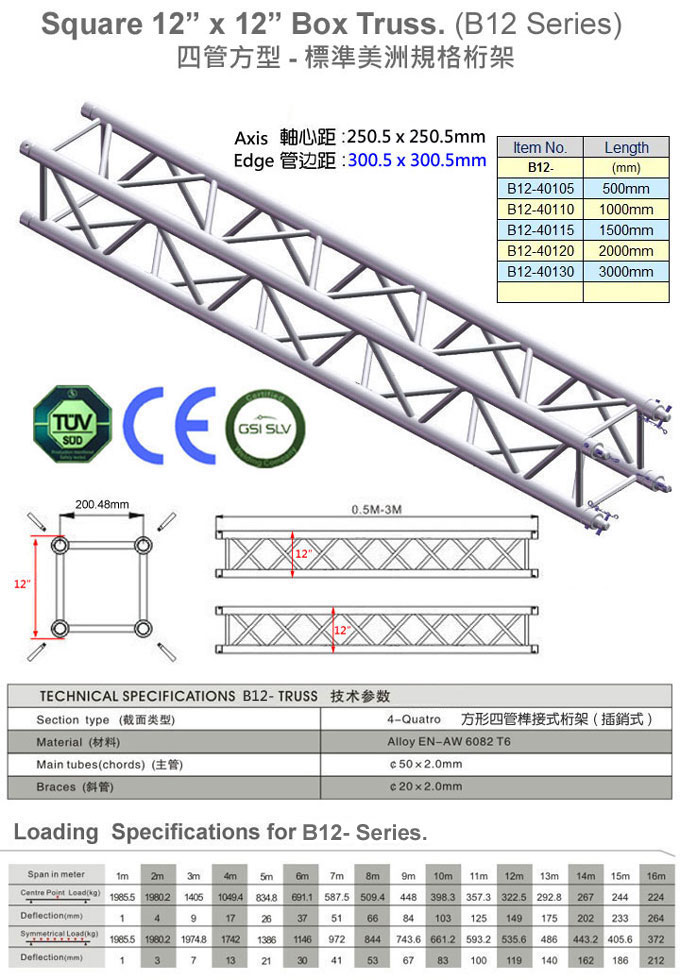

 Aluminum Truss >> Multi-purpose Truss >> B-Type Quatro 12"x12" Truss. (300.5 x 300.5mm)as  M290B



B12-40025
Quatro Straight, 250mm

B12-40105
Quatro Straight, 500mm

B12-40110
Quatro Straight, 1000mm







B12-40120
Quatro Straight, 2000mm
B12-40130
Quatro Straight, 3000mm

B12-46300
Multi-Angle for Quatro 290


B12-40805
Quatro 3 Way Corner Angle
B12-40705
Quatro 3 Way T-Angle
B12-40405
Quatro 2 Way L-Angle

BQ-Base
 Small Aluminum Base
(350x350x8mm with Half Coupler)
Base-800
Heavy Duty Round Steel Base
(Ø800x16mm, +/-75kg. with Coupler)
Base-600s
Square Steel Base
(600x600x8mm with Half Coupler)


12"x12" Square Truss (Box Truss) is probably the most widely used truss in Central South America. Perfect for general use over short runs, 12"x12" Truss is suitable for Little Tower , DJ / Band, Lighting trusses or small to medium shows where roof height or sight lines are an issue. Those trusses comes fitted with worldwide standard conical couplers, Spigots and Safety-Pins for joining more pieces of truss (no Screw fix required).
