Adjustable Layer Pillar Base

可调雷亚架角座组

Order Code :  LB-500

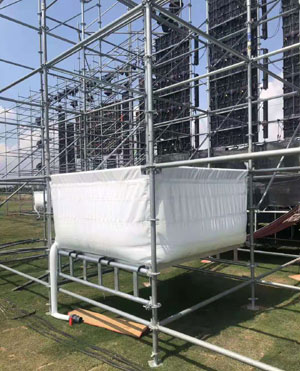

雷亞架-配重水箱:

鋪設快速,方便收藏.堅固耐用


































Stage Board Holder
二通托板及四通托盤














黑色革命:
点击此图片,连结更多图示
Click above picture for more...

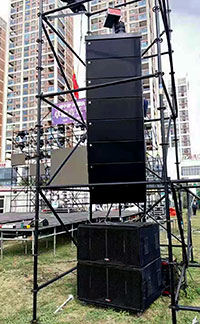

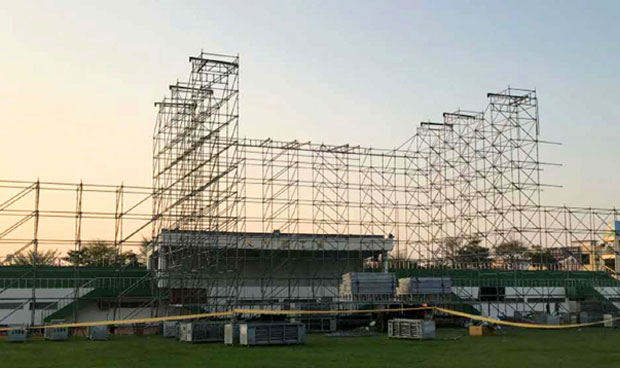

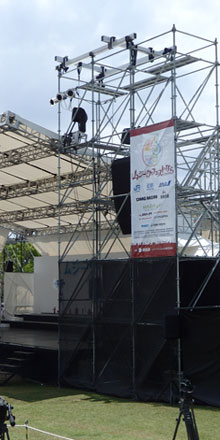

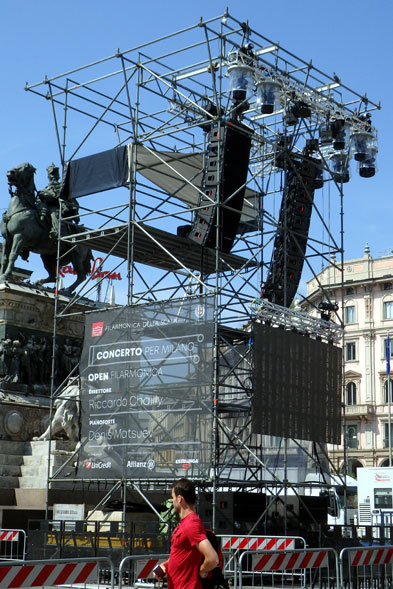

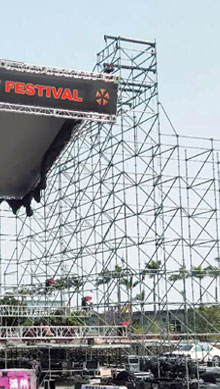

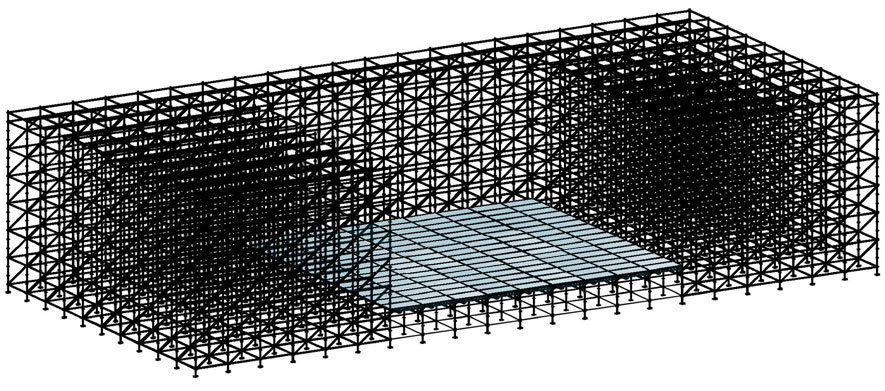

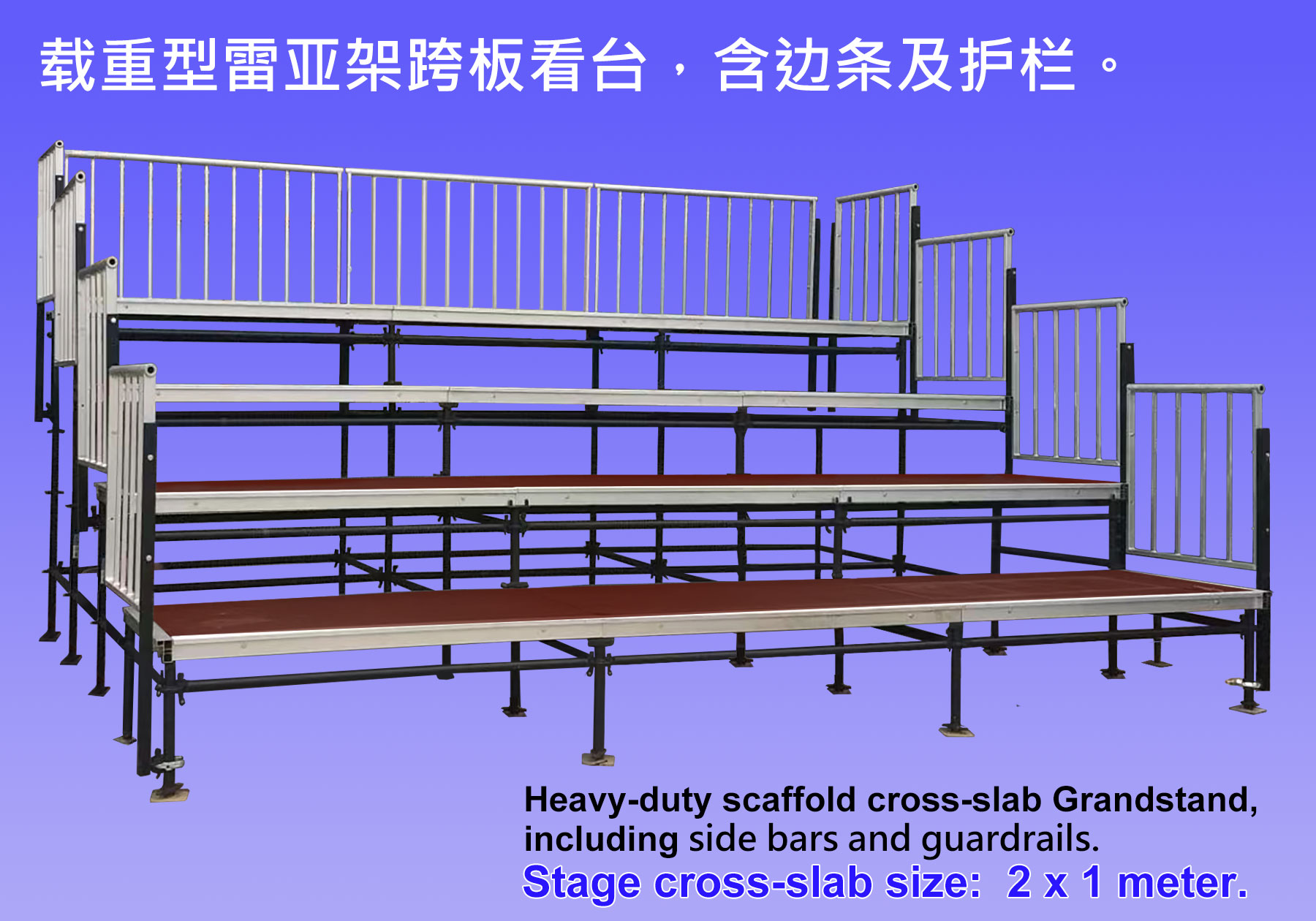

Entertainment Events Layer Structure

All Scaffold products can be Zinc Treatment or Black Plating Treatment.

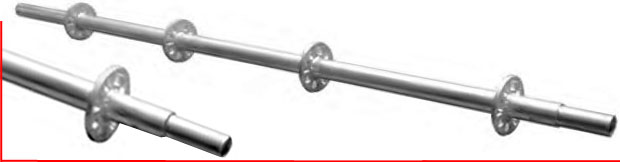

Standard Pillars :  標準雷亞柱




Details .
Specification

Code

Weight

  Specification

Code

Weight

Ø48mm, H:3.0m, T:3.25mm.(6P)

LS3000

14.2 kg

Ø48mm, H:1.5m, T:3.25mm.(3P)

LS1500

7.3 kg

Ø48mm, H:2.5m, T:3.25mm.(5P)

LS2500

12.0 kg

Ø48mm, H:1.0m, T:3.25mm.(2P)

LS1000

5.1 kg

Ø48mm, H:2.0m, T:3.25mm.(4P)

LS2000

10.1 kg

Ø48mm, H:0.5m, T:3.25mm.(1P)

LS0500

2.3 kg

  4P=4pc Hook Tray. Item Number with "B" will be the Black Plating Treatment. 镀黑产品, 号尾码 "B"

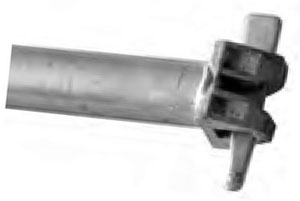

Standard Ledger :  標準雷亞橫拉桿

Details

Specification

Code

Weight

Ø48mm, L:2000mm, T:3.0mm.

LL2000 7.3 kg

Ø48mm, L: 1000mm, T:3.0mm.

LL1000 5.1 kg

Ø48mm, L: 500mm, T:3.0mm.

LL500 3.0 kg

Other Length or Customers Dimension also Available

  Item Number with "B" will be the Black Plating Treatment./ 黑色產品,尾號加 "B"

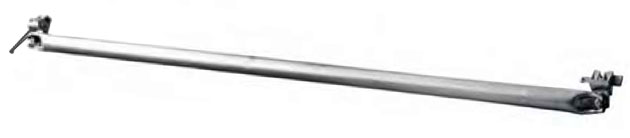

Diagonal Brace :  雷亞斜拉桿

Details

Specification

Code

Weight

Remarks

W:2.0m, H:1.5m, T:2.75mm

LD2400 8.7kg Standard 2m Brace.二米格框

W:1.0m, H:1.5m, T:2.75mm

LD1755 6.4kg Standard 1m Brace.一米格框


Customers Special Spec. and Dimension requiments also available

  Item Number with "-B" will be the Black Plating Treatment../ 黑色產品,尾號加 "B"..........





Heavy Duty Ledger :  載重雷亞橫拉桿

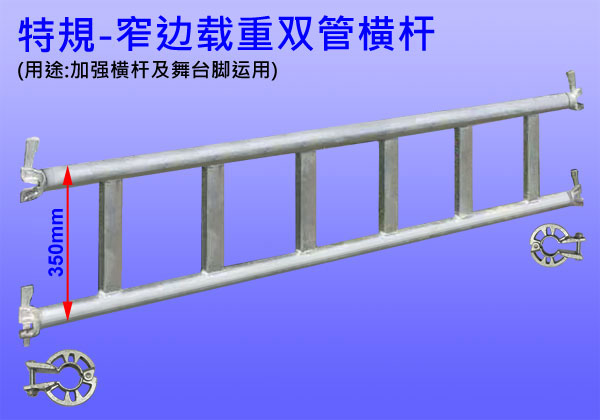

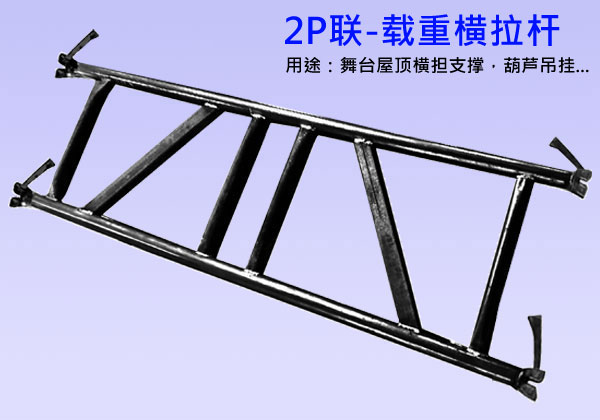

Heavy Duty Duo Ledger

Heavy Duty Trio Ledger

Order Code Details (24.8kg)
Duo-LL2000  Zinc Treatment 鍍鋅
Duo-LL2000B Black Treatment.(黑)
Order Code Details (42.3kg)
Trio-LL2000  Zinc Treatment 鍍鋅
Trio-LL2000B Black Treatment.(黑)
  Item Number with "-B" will be the Black Plating Treatment. 镀黑产品, 号尾码   "B"

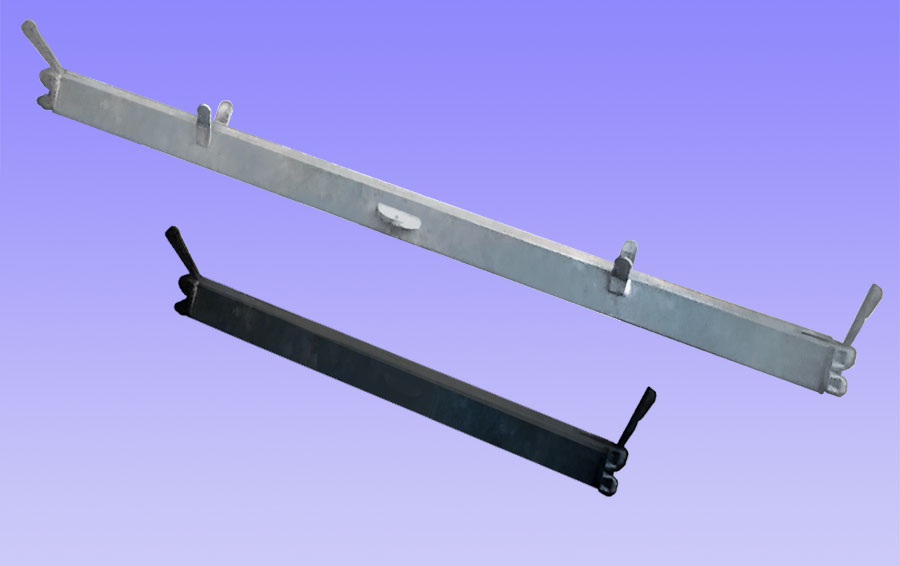

Layer Stage Board Support Beam :  舞台板框支撐铁樑

Details

SB-2000

2 meter, Zinc Treatment.(鍍鋅)

SB-2000B

2 meter, Black Treatment.(黑)

SB-1000

1 meter, Zinc Treatment.(鍍鋅)

SB-1000B

1 meter, Black Treatment.(黑)

任何長度之鉄樑或鉄木樑,皆可依要求訂作。
5pt

使用Java Scrip編輯, 為能詳細瀏覽產品, 敬請使用電腦瀏覽本網站。



Layer Accessories  :  相關佩件 .

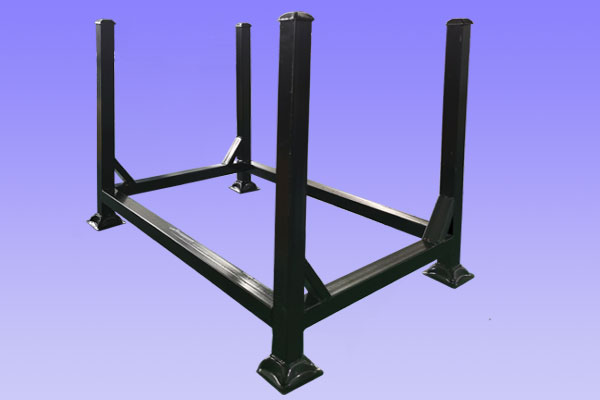

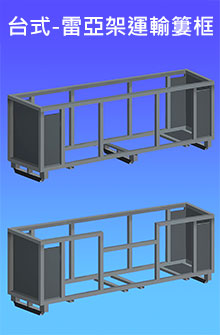

Layer Transporting Frame 运送框架

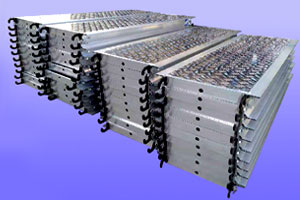

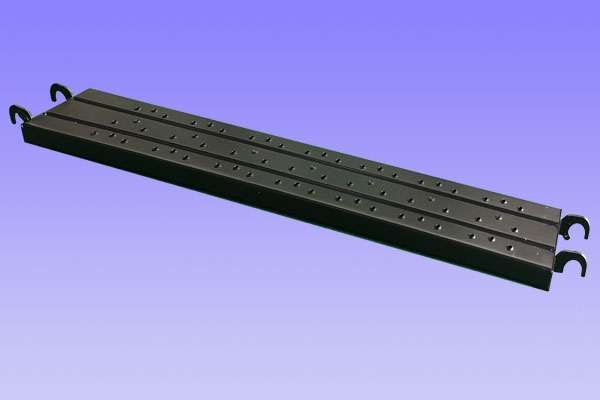

Layer Platform /鋁合金-雷亚架跨板

Order Code Details (27 kg)
TRS-100  Zinc Treatment.(鍍鋅)
TRS-100B Black Treatment.(黑)
Order Code

Details

LPF-2000

L:2000mm / W:630mm / H:80mm

铝合金-脚踏板/工作平台, 三片即可铺满格框.

Weight:62kg, Size:1200x1000x900mm, Can be put Pillars +/- 50pc, Ledger or, Diagonal Brace +/- 120pc

Weight:18 kg, / 鋁合金型材,鋼質包膠勾扣.
Max. Loading : 180kg each.

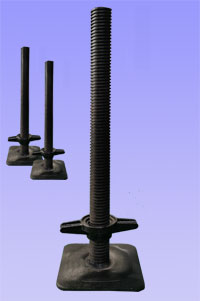

Adjustable Layer Foot.可调雷亚架脚座组

Layer Base Barriers. 扣件栅栏
Order Code

Details

LB-500..

H:500mm,Tray:120x120mm.(Zinc)

LB-500B

H:500mm,Tray:120x120mm.(Black)
Order Code

Details

BR2000..

W2000mm H900mm. ( Zinc)

BR2000B

W2000mm H900mm.(Black)
  Click above picture for Details.点击上图 跳下页

  Item Number with "-B" will be the Black Plating Treatment. 镀黑产品, 号尾码 "B"

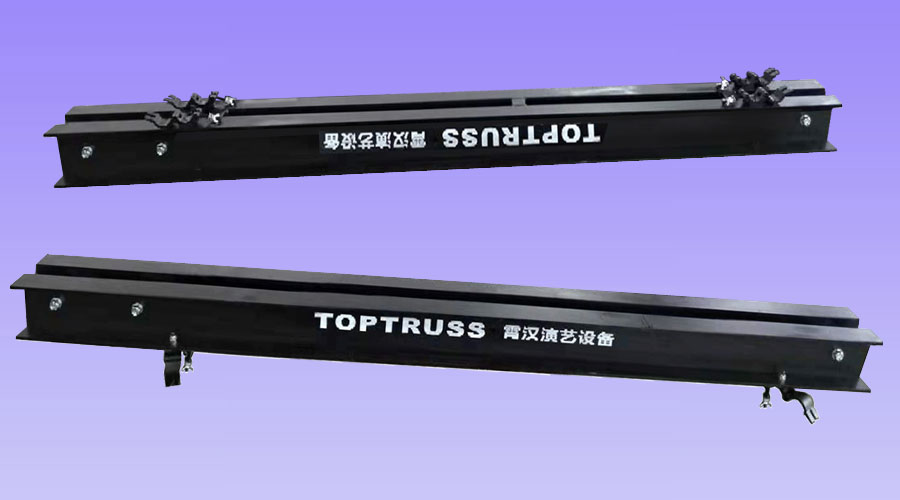

Layer Top-Section bar for Chain-Hoist : 雷亚架专用-葫芦横担

Using on the top of Layer Frame, hide two Chain Rail pulley on both side, use for guide and regulate the hoist chains.
Length: 2800mm , Weight: 50kg , Loading: 10 Tons. / 長:2.8米,重:50kg, 最大吊重:10噸。

Order Code :  LA-MT01
( Original Color or Black color Coating./ 鋁本色 或 黑色處理.)
