Duo Trusses :





Duo 220 Truss Duo 290 Truss Duo 390 Truss Duo 1010 Truss











 Edge 290mm , Duo Truss.  (標準歐規二管排片290桁架)

  Main Tubes: Ø50 x 2mm, Brace: Ø25 x 2mm。 Bushing: Ø50 x 10mm with Conical Coupler.


Loading Specification for Duo 290 Truss :

    1m 2m 3m 4m 5m 6m 7m

990.5 400.6 172.2 89.5 51.5 25.5 ..

Deflection.(mm)

0 1 1 2 3 3 ..

993.8 562.5 282.5 145.8 83.5 43.2 ..

Deflection.(mm)

0 1 1 1 2 2 ..

The Small Duo Truss is only using in decorative or simple small scaffolding. There are no Loading Test Report or Certification.
管排片之小桁架 只使用在装饰或简易棚架。不提供载重测验认证报告
 Aluminum Truss >> Multi Purpose Truss >>  DUO-290   (= M290B Duo-BTB)

Duo Straight 500mm
B29-20105
Duo Straight 1000mm
B29-20110

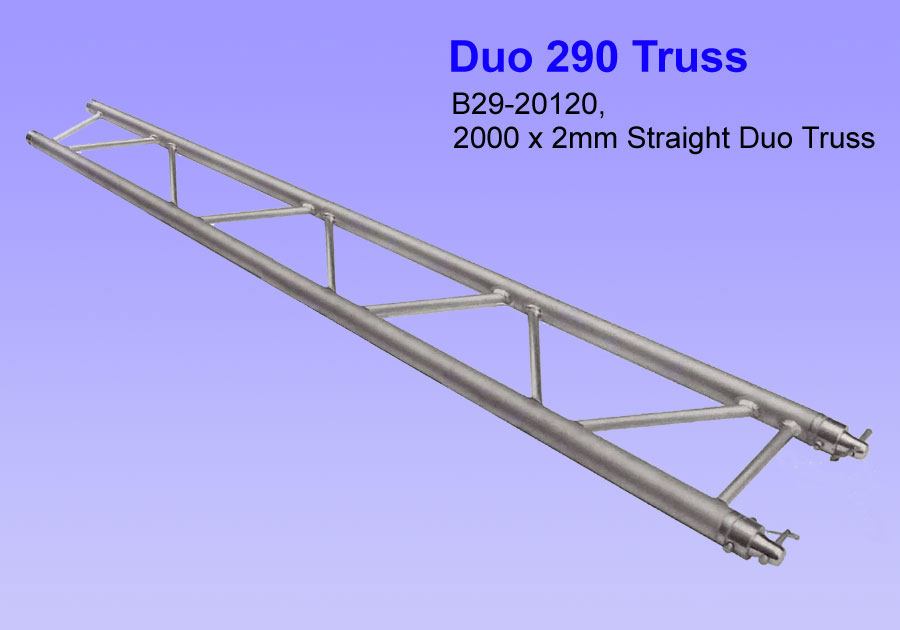

Duo Straight 2000mm
B29-20120


Duo Straight 3000mm
B29-20130

Duo 2 Way 45º V-Angle
B29-20210

Duo 2 Way 60º V-Angle
B29-20310


Duo 2 Way V120º V-Angle
B29-20505
Duo 2 Way V135º V-Angle
B29-20605
Duo 2 Way V45º H-Angle
B29-20705

Duo 2 Way V60º H-Angle
B29-20805
Duo 2 Way L90º H-Angle
B29-20905
Duo 2 Way V120º H-Angle
B29-21005

Duo 3 Way T90º V-Angle
B29-21105
Duo 3 Way T90º  H-Corner
B29-21405
Duo 3 Way T90º V-Corner
B29-21505

Duo 3 Way T90º H-Angle
B29-21705
Duo 4 Way Cross V-Angle
B29-21205
Duo 3 Way T90º + 1 V-Angle.
D
uo Angle.  B29-21305


Duo 3 Way T90º + 1 H-Angle.
B29-21605
Duo 2 Way L90º V-Angle.
B29-20405


Duo-290 Messestand Trussing :
Die 2 Punkt
Traversensystem für normale Belastungen. EN AW6082-T6 Legierung.
