Aluminium
Truss
>>
Quatro 400
Truss
>>
C40 Series, Quatro 400x400mm
Straight .
(400x400mm 正方型歐規桁架) |
|
|
|
产品使用厚度3mm主管, 副管为25x2mm。如较大负载之使用,可内加焊对角斜管补强管. (产品编号则改为:
X40系列, 例: X40-40130 ) |
|
 |
|
Item No. |
Length. |
Meas. |
|
(C-Type)
|
(mm) |
(cu'ft) |
|
C40-40105 |
500 |
3.22 |
|
C40-40110
|
1000 |
6.23 |
|
C40-40115 |
1500 |
9.19 |
|
C40-40120 |
2000 |
12.17 |
|
C40-40125 |
2500 |
15.13 |
|
C40-40130 |
3000 |
18.10 |
|
C40-40140 |
4000 |
24.04 |
|
|
|
|
|
C-Series
main tube thickness
3mm |
|
B-Series
main tube thickness
2mm |
|

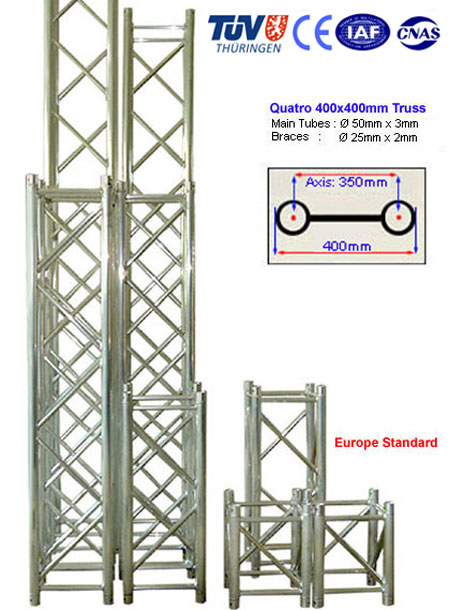

Description :
Tubes:
Alloy EN AW6082-T6,
Coupler: Alloy EN AW2011-T6
Shape : 400x400mm Square.
Long : 500mm to 4000mm,
Main Tube : Ø50 x
3mm,
Brace Tube : Ø25 x 2mm.
|
Additional Diagonal
Brace :
If need use for beam and
long span,
There are
also additional Diagonal
Line Brace on the middle. for
Crossbeam Anti-bending.
1
meter for 2 pcs,
2 meter for 3 pcs,
3 meter for 4 pcs,
4 meret for 5 pcs.
|
|
|
