Quick & Easy Assembly by
Spigot Connector with Safety Pins

Click for Parts Page
点击上图到配件页

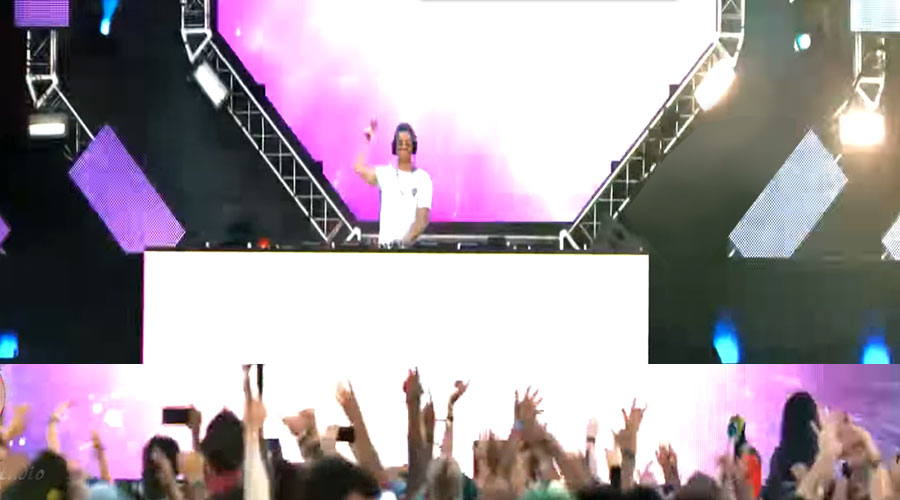

Your Lighting Wall by 290 Truss
Easy & Fast installation
Click for Details / 点击详见图片








Click for Parts Page
点击上图到配件页









 Aluminum Truss >> Multi-purpose Truss >> B-Type Quatro 290 Truss.    (B29-  =  2mm Series, C29- = 3mm Series.)
   (X29- = 2mm Series with  Diagonal Brace. )

利用鼠标点击以下图片,跳下一页。Click below pictures, for next pages

B29-40025
Quatro Straight, 250mm

B29-40105
Quatro Straight, 500mm

B29-40110
Quatro Straight, 1000mm





B29-40120
Quatro Straight, 2000mm
B29-40120
Quatro Straight, 2000mm
B29-40130
Quatro Straight, 3000mm

B29-40310
Pinnacle 60º A-Angle
B29-40210
Pinnacle 45º A-Angle
B29-40305
External Curved type 90º 2 way Angle
内方外圆
-90度通弯头

B29-40405
Quatro 2 Way L-Angle
B29-40505
Quatro Angle V120º

6 pcs for
an Hexagon Circle.
B29-40605
Quatro Angle V135º
8 pcs for an Octagon Circle.

B29-40705
Quatro 3 Way T-Angle
B29-40805
Quatro 3 Way Corner Angle
B29-40905
Quatro 4 Way T-Angle

B29-41005
Quatro 5 Way T-Angle
B29-41105
Quatro 4 Way X-Angle
B29-LK105
105mm Angles Regulate Set
 (Heavy Duty Tubes)

B29-LK210
210mm Angles Regulate Set
 (Heavy Duty Tubes)
Base-800
Heavy Duty Round Steel Base
(Ø800x16mm, +/-75kg. with Coupler)
Base-600s
Square Steel Base
(600x600x8mm with Half Coupler)


Base-900s
Square Aluminum Base for 290(600x600x8mm with Half Coupler)

B29-46290
Multi-Angle for Quatro 290
(Box -Corner)

B29-42290
Book-Corner 290


The 290 Roof Beam & Roof Slope Accessories / 300型-屋顶特殊弯头配件

B29-43W15
Roof Eaves 15º Slope 3 Way Angle
屋顶斜边三通尾段
B29-44T15
4 Way Top Beam 15º Slope Angle.
斜型屋顶-四通龙骨脊樑
B29-45T15
5 Way Top Beam 15º Slope Angle
斜型屋顶-五通龙骨脊樑

B29-41W15
Roof Eaves 15º Slope One Way  Angle
简易型-屋顶斜边尾段
B29-QT705
Quatro to Trio Top-Beam Angle.
四管转三管T型三通弯头
B29-44X15
4 Way Keel Beam 15º Slope Angle
斜型屋顶-尖頂四通龙骨脊樑


B29-44S15
Roof Slope 15º 4 way Side Pillar Angle
屋顶-15度立柱通弯头
B29-43S15
Roof Slope 15º 3 way Side Angle
屋顶-15度通弯头



290mm Square Truss (Box Truss) is probably the most widely used truss in worldwide standard. Perfect for general use over short runs, 290mm Truss is suitable for Little Tower , DJ / Band, Lighting trusses or small to medium shows where roof height or sight lines are an issue.  Those trusses comes fitted with conical couplers, Spigots and Safety-Pins for joining more pieces of truss (no Screw fix required).




TB4-290 Messestand Trussing :  Die 4 Punkt Traversensystem für normale Belastungen.
Benutzt die
EN-AW6082-T6
(AIMgSi-F31) Legierung.



 Loading Table for B290 : Main Tubes : Ø 50mm x 2mm , Braces :  Ø 20mm x 2mm

Average Load : kgs / meter 2m 4m 6m 8m 10m 12m 14m
   2350  1525  1125 875 600 425
Deflection (mm)   11 31 64 108 149 199
Load / kgs 2m 4m 6m 8m 10m 12m 14m
1700 1350 750 550 450 350 300
Deflection (mm) 18 21 32 51 79 112 148

 Loading Table for X290 : Main Tubes : Ø 50mm x 2mm , Braces :  Ø 20mm x 2mm . with Diagonal Brace.

Average Load : kgs / meter 4m 6m 8m 10m 12m 14m  16m
 2350  1525  1125 875 600 425 325
Deflection (mm)  9.5  29  58 98 140 191 248
Load / kgs 4m 6m 8m 10m 12m 14m  16m
1350 750 550 450 350 300 250
Deflection (mm) 12 26 49 76 108 142 196

Quantity of Diagonal Brace are 4pc for 3 meter Truss., ( 3pc for 2m and 1.5m, 2pc for 1m Truss.)    A


 Loading Table for C290 : Main Tubes : Ø 50mm x 3mm , Braces :  Ø 20mm x 2mm .

Average Load : kgs / meter 4m 6m 8m 10m 12m 14m  16m
2350  1525  1125 875 600 425 325
Deflection (mm)  8.5  21  51  97  138 187  245
Load / kgs 4m 6m 8m 10m 12m 14m  16m
1350 1050 800 625 525 425 350
Deflection (mm) 10.5 27.5 47 74 114 155 198
Divide Loading are maximum by 7 point load, or Minimum 1 meter interval on spam.
